G2-13A 23-pin signal connector
Product Introduction:
Product design standard: Comply with LV214-1, USCAR-2 low-voltage connector standard;
Product features: Easy to operate, safe and reliable;
Applications: new energy vehicle PDUs, on-board controllers, battery packs and other components;
Technical parameters:
1. Electrical performance
Voltage Rating: 400VDC
Current rating: 13A
Withstand voltage: 1500VAC
Insulation resistance: >5000MΩ
Contact resistance: <0.5mΩ
2. Environmental performance
Salt spray resistance: >96h
Flame retardant: UL94-V0
Waterproof Rating: IP68 (Plug Together)
Operating temperature: -40 ~ 125°C
Model selection:
| serial number | name | Model | Specification description |
| 1 | plug | G2-EV23P16F-P18-NXX | Metal signal connector - 23 pins φ1.6mm female terminal - plug - A key position |
| 2 | receptacle | G2-EV23P16M-S18-NXX | Metal signal connector - 23 pin φ1.6mm male terminal - socket - A key position |
(*Note: The N letter in the model represents the mounting key position, and there are five types of NXYZW key positions to choose from;
XX means that there are 01-16AWG, 02-18AWG crimping specifications available)

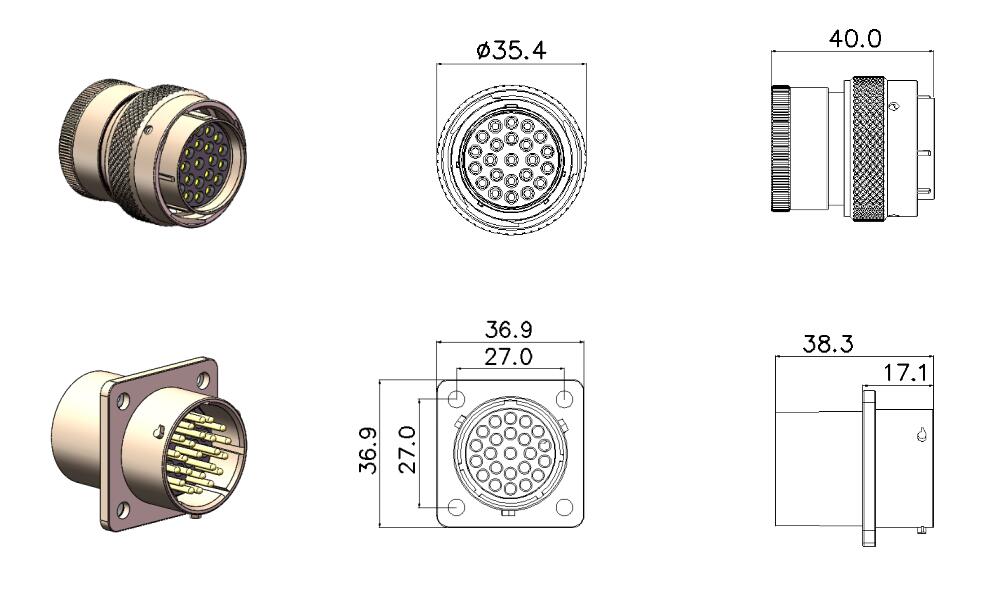

Dimensions:
