G2-13A 8-pin signal connector
Product Introduction:
Product design standard: Comply with LV214-1, USCAR-2 low-voltage connector standard;
Product features: Easy to operate, safe and reliable;
Applications: new energy vehicle PDUs, on-board controllers, battery packs and other components;
Technical parameters:
1. Electrical performance
Voltage Rating: 400VDC
Current rating: 13A
Withstand voltage: 1500VAC
Insulation resistance: >5000MΩ
Contact resistance: <0.5mΩ
2. Environmental performance
Salt spray resistance: >96h
Flame retardant: UL94-V0
Waterproof Rating: IP68 (Plug Together)
Operating temperature: -40 ~ 125°C
3. Mechanical properties
Vibration resistance: LV214, LEVEL3
Impact resistance: 20g
Number of plugs and unplugs: >500 times
Housing locking force: >400N
Model selection:
| serial number | name | Model | Specification description |
| 1 | plug | G2-EV8P16F-P12-NXX | Metal signal connector - 8 pins φ1.6mm female terminal - plug - A key position |
| 2 | receptacle | G2-EV8P16M-S12-NXX | Metal signal connector - 8-pin φ1.6mm male terminal - socket - A key position |

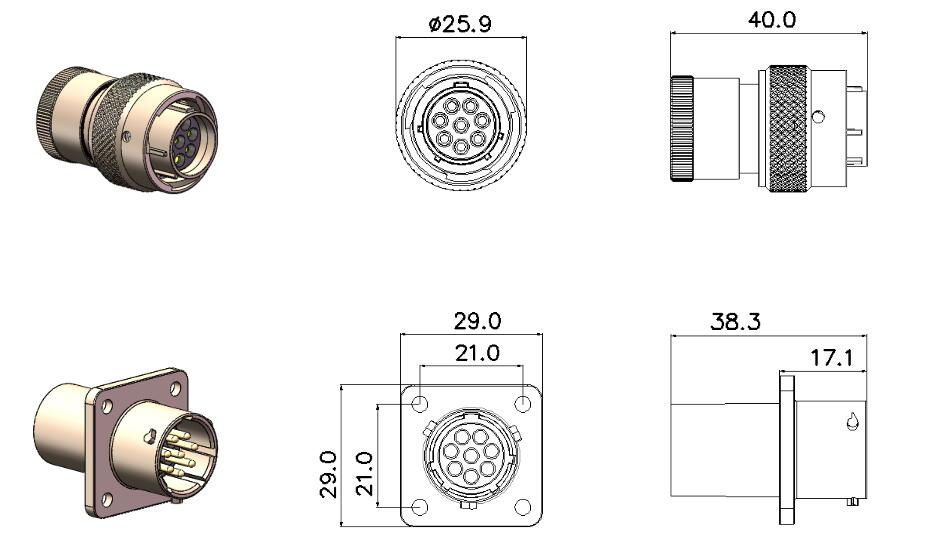

Dimensions:
