G3-HVIL 320A 3-pin high-voltage connector
Product Introduction:
Product design standard: Comply with LV215-1, USCAR-37, GB/T37133-2018 high-voltage connector standards;
Product features: easy to operate, novel appearance, safe and reliable;
360° shielding, secondary interlock, anti-finger finger;
Aluminum alloy shell: light weight, high mechanical strength, strong salt spray resistance, small size, reliable EMC;
Applications: new energy vehicle PDU, motor and other components;
Technical parameters:
1. Electrical performance
Voltage Level: 1000VDC
Rated current: 320A
Withstand voltage: 3000VAC
Insulation resistance: >5000MΩ
Contact resistance: <0.08mΩ
Shielded contact resistance: <5mΩ
2. Environmental performance
Salt spray resistance: >240h
Flame retardant: UL94-V0
Waterproof Rating: IP68 , IP6K9K (Plug Through)
Operating temperature: -40 ~ 125°C
Model selection:
| serial number | name | Model | Specification description |
| 1 | plug | G3-HVIL3P120F-PV-AXX | Metal High Voltage Interlock Connector - 3 Pin φ12mm Female Terminal - 90° Plug - A Key Position |
| 2 | plug | G3-HVIL3P120F-P-AXX | Metal High Voltage Interlock Connector - 3 Pin φ12mm Female Terminal - 180° Plug - A Key Position |
| 3 | receptacle | G3-HVIL3P120M-S-AXX | Metal High Voltage Interlock Connector - 3 Pin φ12mm Male Terminal - Socket - A Key Position |
(*Note: The letter A in the model represents the mounting key position, and there are four ABCD key positions to choose from;
Plug XX means that there are two crimping specifications of 50mm² and 70mm² to choose from;
Socket XX means that there are 01-via copper bars, 02-screws, 03-vias with screws, three specifications to choose from)

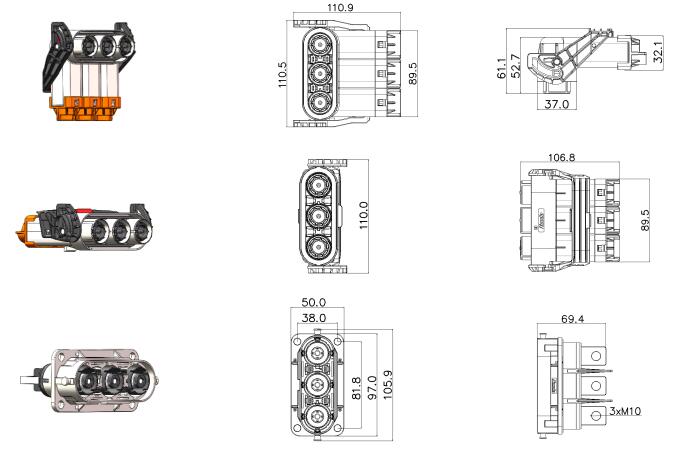

Dimensions:
